XAutoLab V5 Pro Desktop SMT Pick & Place Machine for PCB Prototyping

XAutoLab V5 Pro Desktop SMT Pick & Place Machine

Base Kit - 1 Electric Feeder Included

$1,499.00 USD $1,799.00 USD

XAutoLab V5 Pro Desktop SMT Pick & Place Machine

$1,499.00 USD $1,799.00 USD

Shipping calculated at checkout.

Professional SMT assembly made accessible. The XAutoLab V5 Pro is the ideal solution for engineers and small-batch manufacturers who require industrial-grade precision and reliability without the complexity of a full-scale factory line.

📦 WHAT’S INCLUDED IN THE BOX?

Everything you need to start your automated assembly line for $1,399:

✅ 1 x XAutoLab V5 Pro Machine – Fully assembled, calibrated, and factory-tested.
✅ 1 x 8mm 3-Lane Electric Feeder – High-speed motorized feeding for your most-used 0402/0603/0805 components.
✅ 1 x Vision Feeder – Advanced vision-based feeding for loose components or specialized ICs.
✅ 2 x Strip Feeders – Ideal for handling short tape segments from prototyping runs.

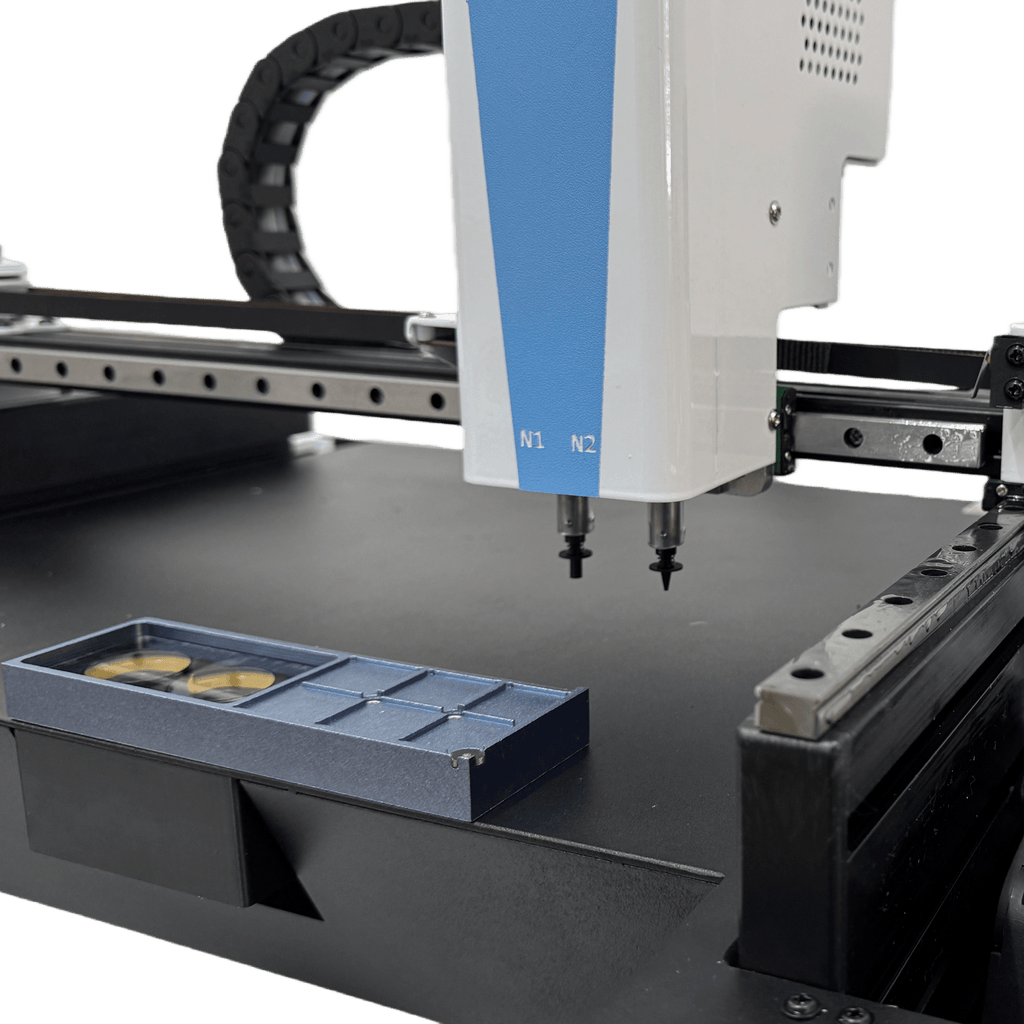

✅ 2 x Juki-compatible Nozzles – Precision-ground for reliable pick-up and placement.
✅ Integrated Industrial Vacuum System – Built-in high-power pump and solenoid valves (No external air source required).
✅ Full Accessory Kit – All necessary power cables, USB communication cables, and lifetime software access.

🚀 CORE ADVANTAGES

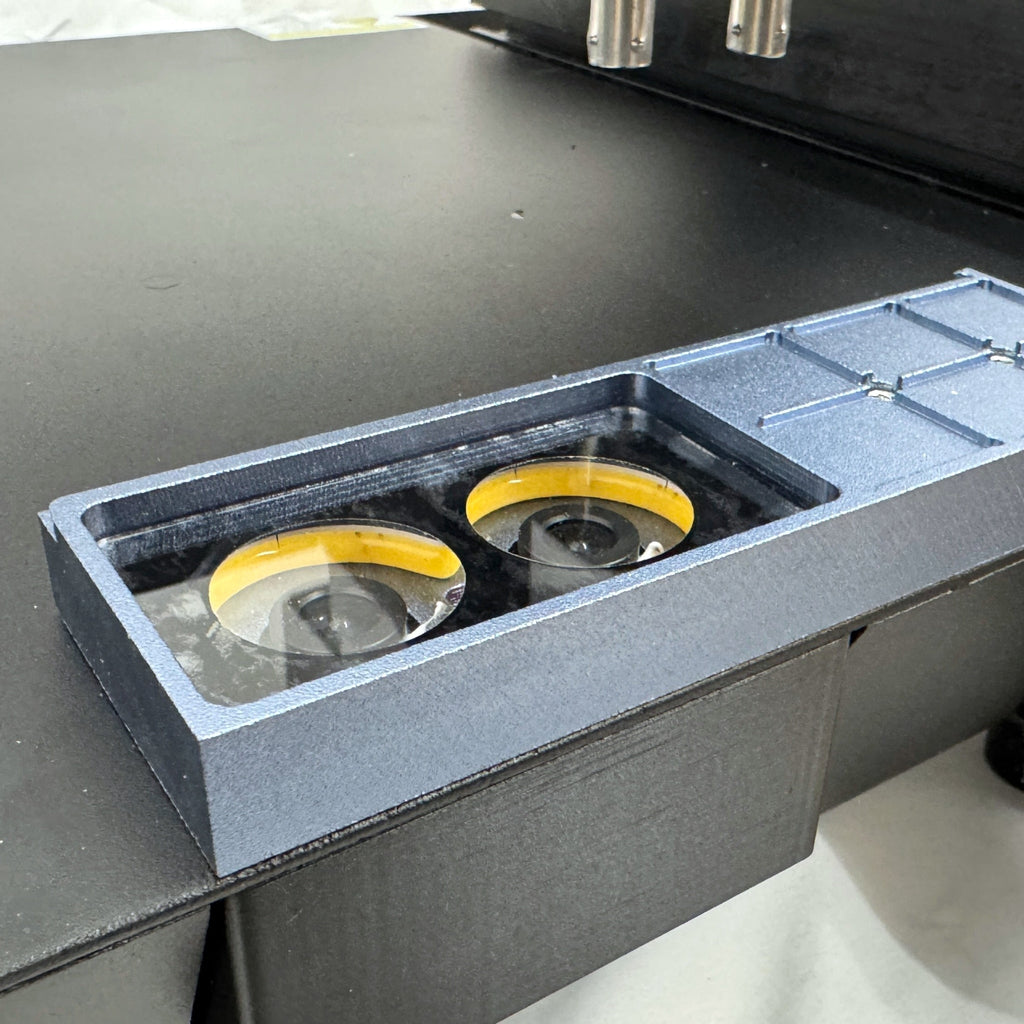

1. Dual-Camera Bottom Vision System

The V5 Pro features a sophisticated Dual-Camera Bottom Vision setup. By utilizing two independent cameras for component alignment, it provides exceptional clarity and precision for a wide range of components, from 0402 passives to complex QFNs and BGAs. While not "on-the-fly," this dual-camera approach ensures maximum placement reliability for every single part.

2. Industrial-Grade 304 Stainless Steel Chassis

Like our flagship models, the V5 Pro is built on a welded 304 stainless steel frame. This rigid foundation eliminates the vibration and precision drift common in aluminum-frame machines, ensuring sub-0.05mm repeatability over years of service.

3. Reliable Production Speed (3,500 CPH)

Optimized for accuracy and consistency, the V5 Pro delivers a steady placement rate of up to 3,500 Components Per Hour. It is the perfect "workhorse" for turning complex PCB designs into finished products in minutes.

4. Modular & High-Capacity Feeding System

The V5 Pro features a flexible feeder rack that accommodates up to 12 standard feeder units (24mm width each):

8mm Feeders (3-lane): Up to 36 unique positions for high-volume passives.
12mm/16mm Feeders (2-lane): 24mm/32mm width for larger components.
Total Versatility: Combined with the included Vision and Strip feeders, you can manage 40+ unique components in a single run.

🛠️ TECHNICAL SPECIFICATIONS

Placement Accuracy: ±0.05 mm
Vision System: 1 x Top Camera, 2 x Bottom Cameras (Dual-Vision)
Max PCB Size: 200 x 300 mm (Supports double-sided boards)
Component Range: 0402, 0603, 0805, SOP, QFN, BGA, etc.
Software: XAutoLab Control (Guided setup, Plug-and-Play)

Package Base Kit - 1 Electric Feeder Included Starter Kit - 3 Electric Feeder Units Standard Kit - 6 Electric Feeder Units Full Feeder Kit - 12 Electric Feeder Units
