High-Precision Nozzles for Flawless Placement
High-Precision Nozzles for Flawless Placement

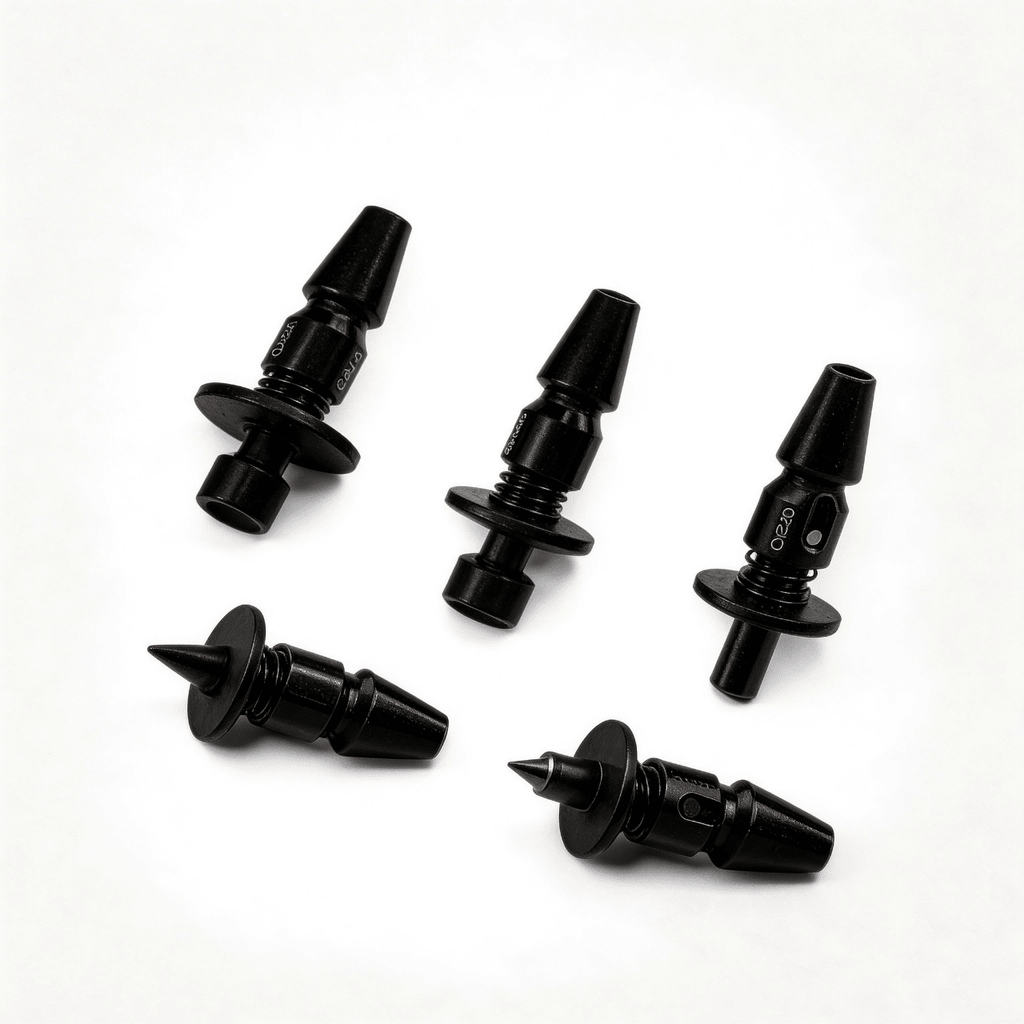

The nozzle is the final, critical point of contact between your machine and your components. Using the right nozzle is essential for achieving high pick-up rates, accurate placement, and preventing component damage. Our range of high-quality, anti-static nozzles ensures reliable performance for every job, from tiny 0201s to large QFPs.
These nozzles are fully compatible with all XAutoLab pick and place machines (X1 Pro, V5 Pro, Mini S1) and follow the industry-standard Samsung CN / JUKI numbering system.
Nozzle Selection Guide
Choose the right tool for the job. Use the table below to select the perfect nozzle based on the components you work with most frequently.
| XAutoLab Model | JUKI Equivalent | Typical Component Range | Best For |
|---|---|---|---|

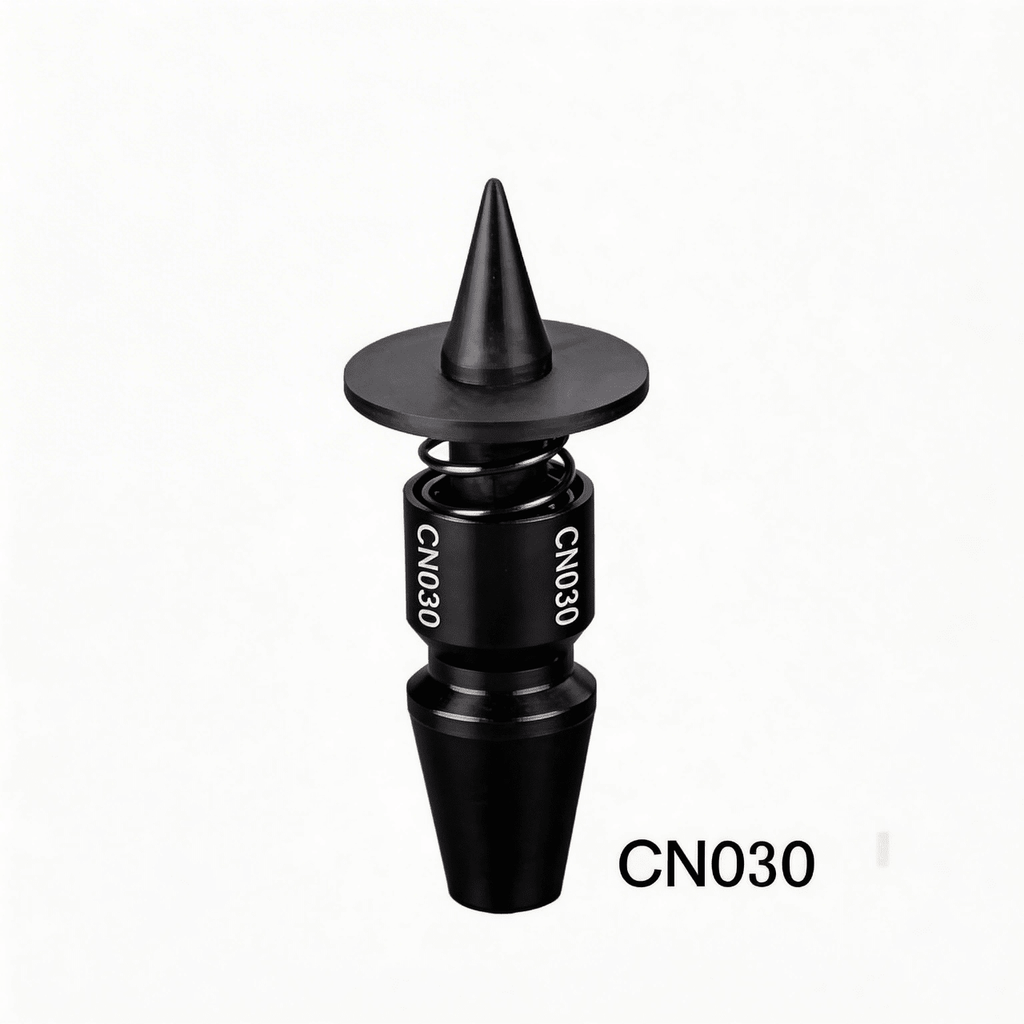

| CN030 | 501 | 0201 | High-density 0201 placement. |
| CN040 | 502 | 0201 – 0402 | General purpose for small passives. |
| CN065 | 503 | 0603 – 1210 | The workhorse for most common SMD resistors and capacitors. |
| CN140 | 504 | 0805 – QFP64, SOP16 | Versatile nozzle for larger passives and small ICs. |

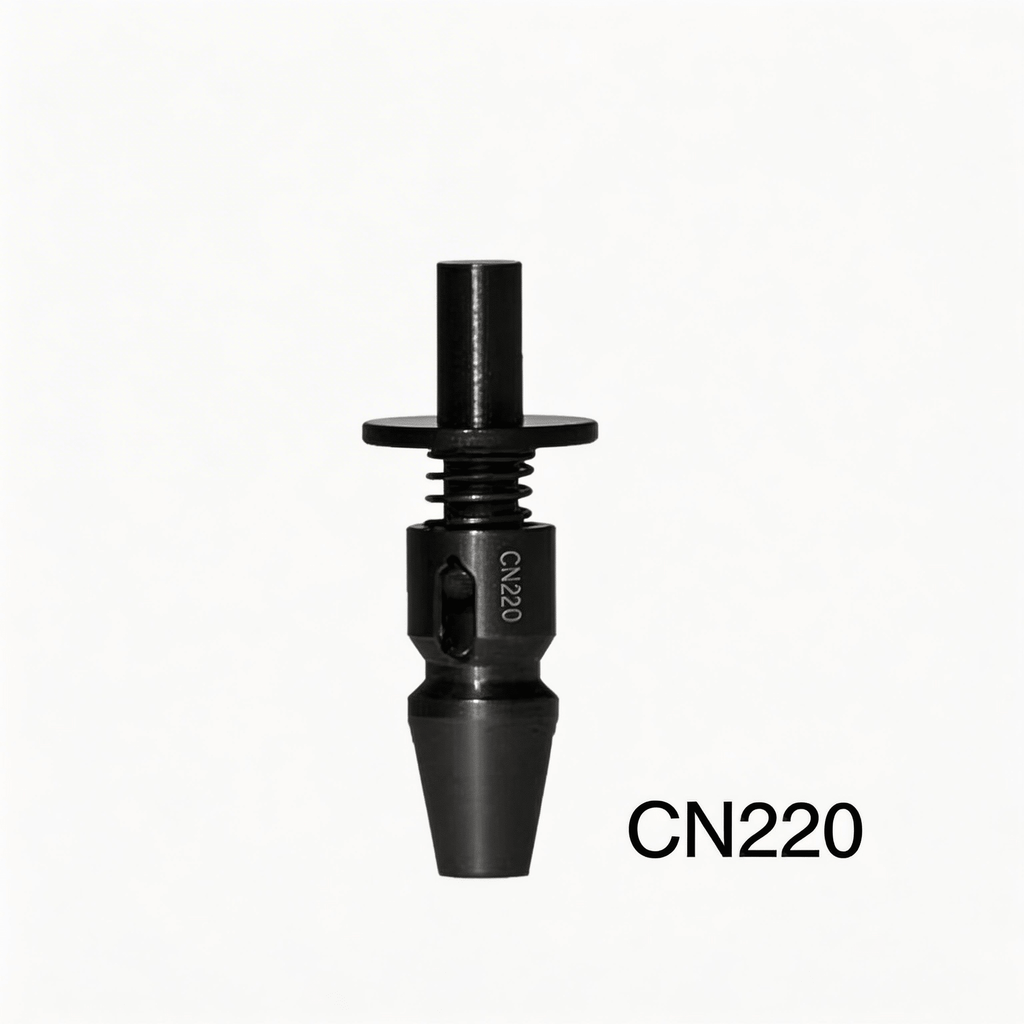

| CN220 | 505 | SMA, QFP176, Capacitors | Ideal for medium-sized ICs and electrolytic capacitors. |

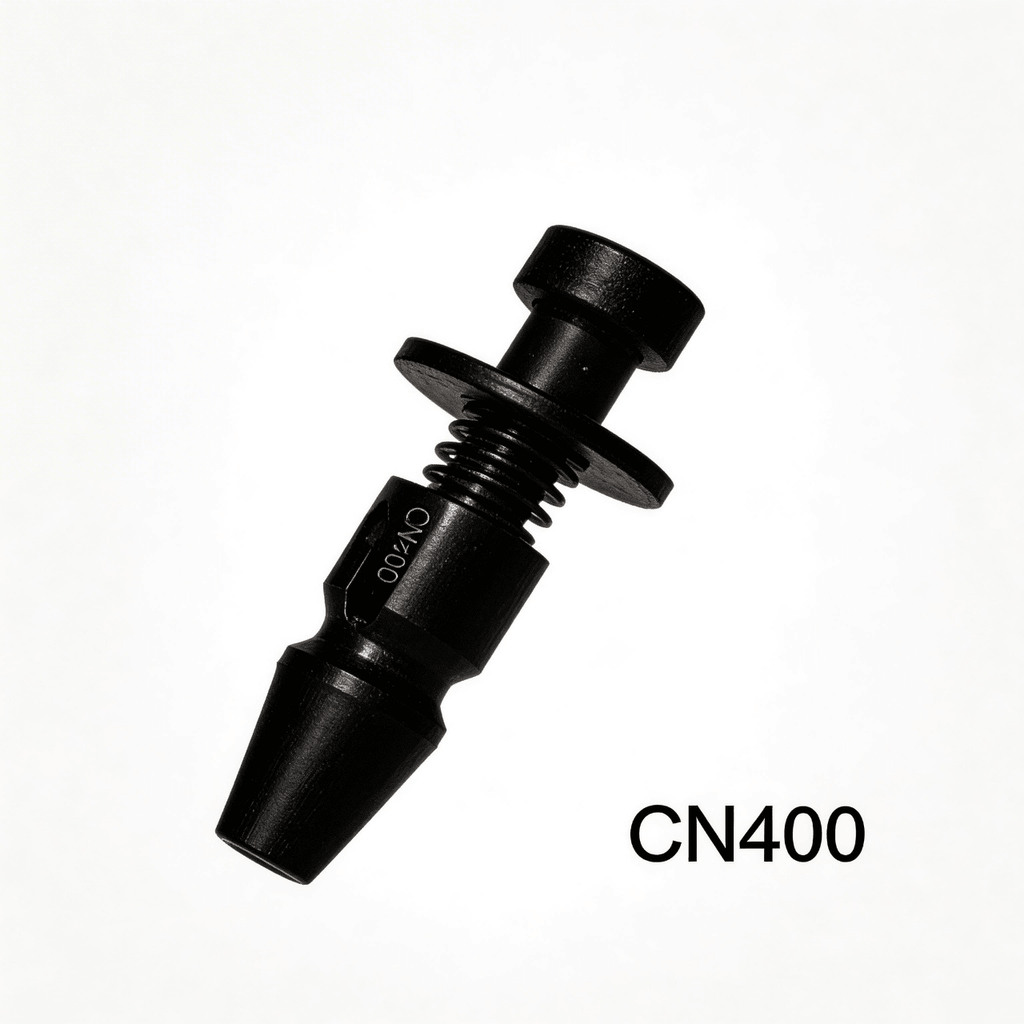

| CN400 | 506 | QFP48 and above | Picking up large, heavy ICs and connectors. |
Key Features
- Precision Machined: Ensures accurate and repeatable component pickup.
- Anti-Static Material: Prevents electrostatic discharge (ESD) damage to sensitive components. Special coating will not turn white or leave residue.
- Optimized Airflow: Provides stable vacuum pressure for reliable holding and minimizes component shift during travel.
- Broad Compatibility: Works seamlessly with XAutoLab X1 Pro, V5 Pro, and Mini S1 machines, and aligns with JUKI/Samsung standards.
Note: Every new machine purchase includes two nozzles of your choice. Use this page to order additional or replacement nozzles. For custom or very large components, please contact us with the component dimensions for a recommendation.
