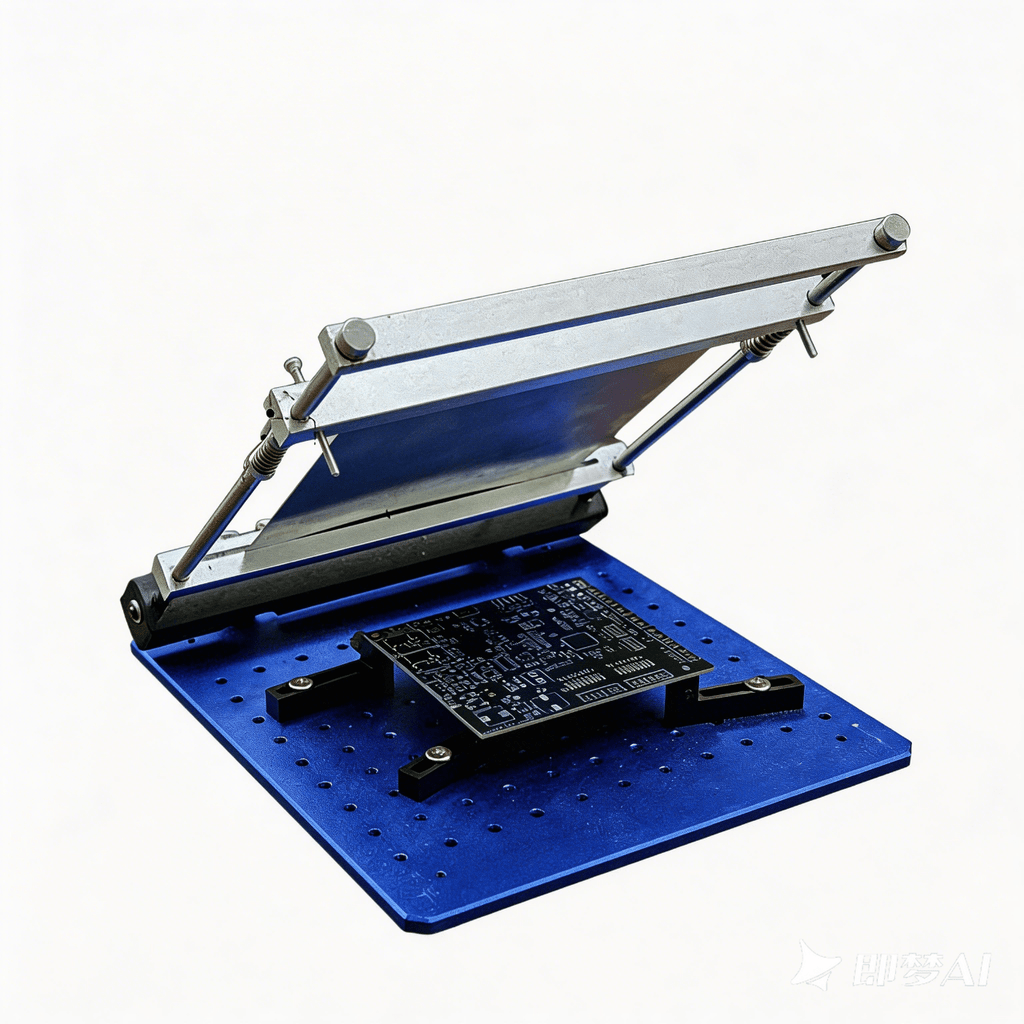

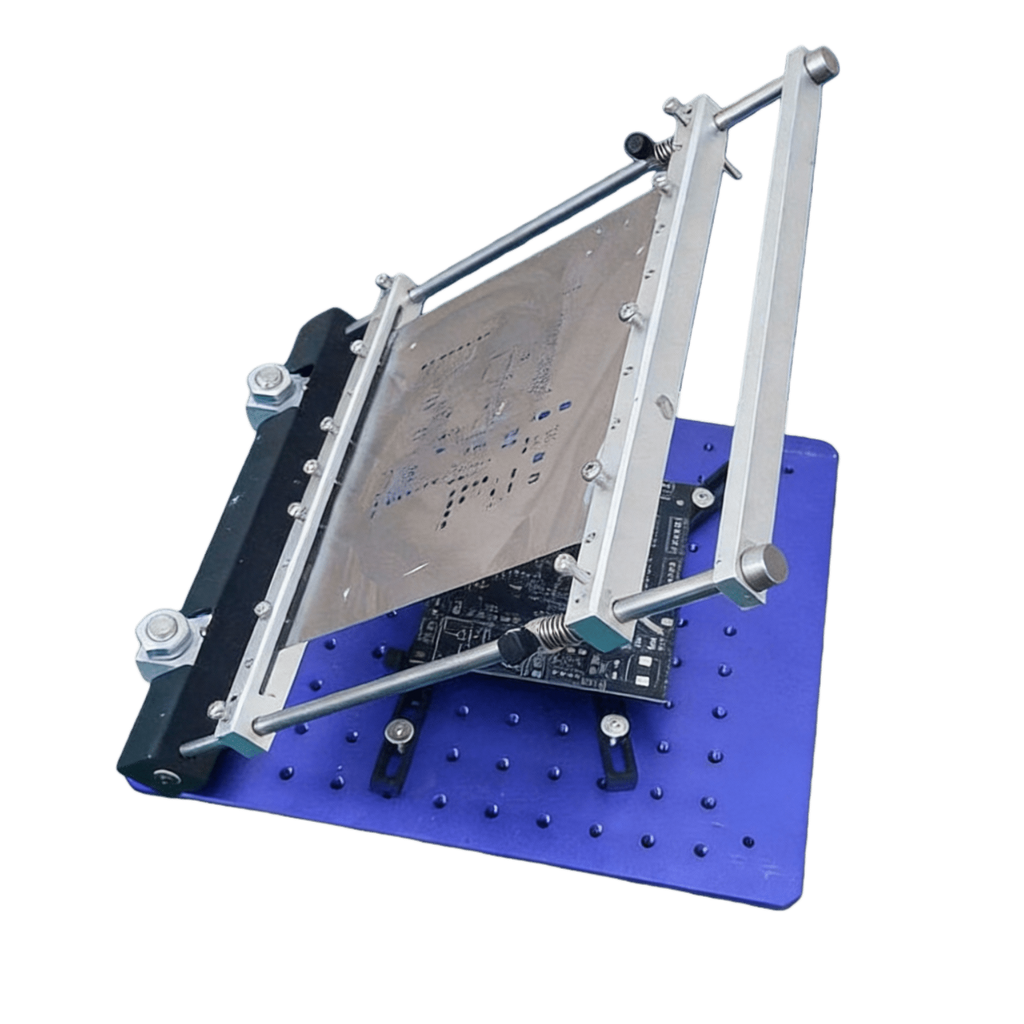

The XAutoLab Manual SMT Stencil Printing Jig is a compact, high-precision desktop solution designed for accurate and repeatable solder paste application. Built with a focus on rigidity and ease of use, it is an essential tool for electronics prototyping, R&D labs, and small-batch SMT assembly.
Key Features:
•CNC-Machined Aluminum Base – Built on a high-quality anodized aluminum platform, providing excellent rigidity and flatness for consistent printing results.
•Fully Adjustable Stencil Support – Features multi-direction alignment arms that allow for precise positioning and controlled stencil tension, ensuring clean paste release.
•High-Precision Repeatability – Designed for stability with a repeatable accuracy of up to ±0.01 mm, making it reliable for consistent production across multiple boards.
•Compact Desktop Design – A space-saving form factor that fits perfectly into any lab or maker space without sacrificing performance.
•Frameless Stencil Compatibility – Specifically optimized for use with frameless steel stencils, offering a cost-effective solution for custom PCB projects.
•Manual Control & Fast Setup – Simple, intuitive operation that gives engineers full control over the printing process with minimal setup time.
Specifications:
•Max Printing Area: 170 × 170 mm
•Repeatable Accuracy: ±0.01 mm
•Base Material: CNC-machined anodized aluminum
•Compatible Stencil Type: Frameless steel stencils only
•Available Colors: Silver / Blue (varies by production batch)
•Application: PCB prototyping, R&D, small-batch SMT assembly
What's Included:
•XAutoLab Manual SMT Stencil Printing Jig

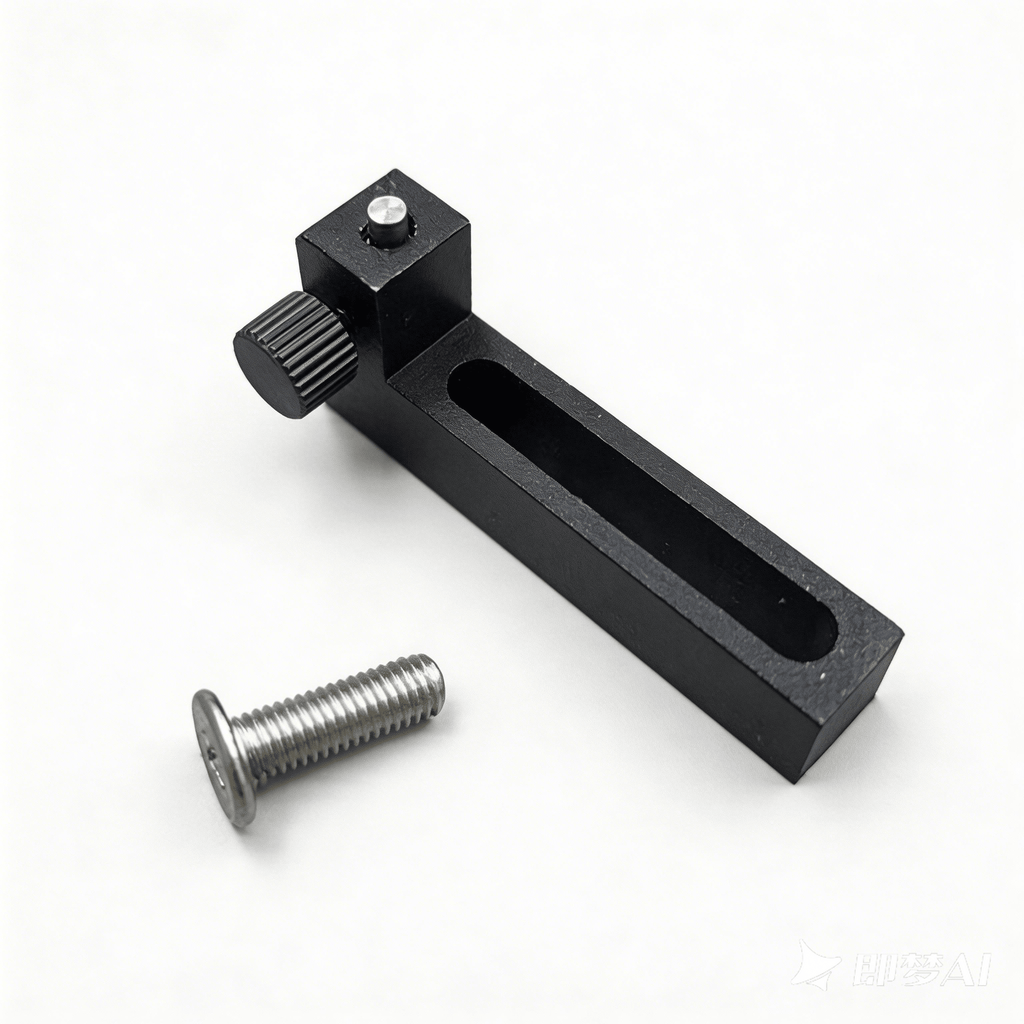

•Adjustable Stencil Support Arms
•PCB Positioning Fixtures
•User Guide / Setup Instructions
With its stable mechanical structure and precise alignment capabilities, this manual stencil printer streamlines the solder paste application process, ensuring professional-grade results for your desktop SMT workflow.
Note: Color may vary (Blue or Silver) depending on the current production batch.
