Plug In. Mount. Place. — No Setup Required.
This OpenPnP-compatible electric feeder is based on the open-source LumenPnP feeder design, fully assembled, firmware-flashed, and calibrated by our team before shipping. Every unit is tested on a real machine to ensure it works reliably right out of the box.
Getting an open-source feeder to run reliably takes more than just following the build guide — component tolerances, firmware tuning, and mechanical calibration all need to be dialed in carefully. We've done that work for you, so you can focus on your PCB assembly instead of debugging your feeder.

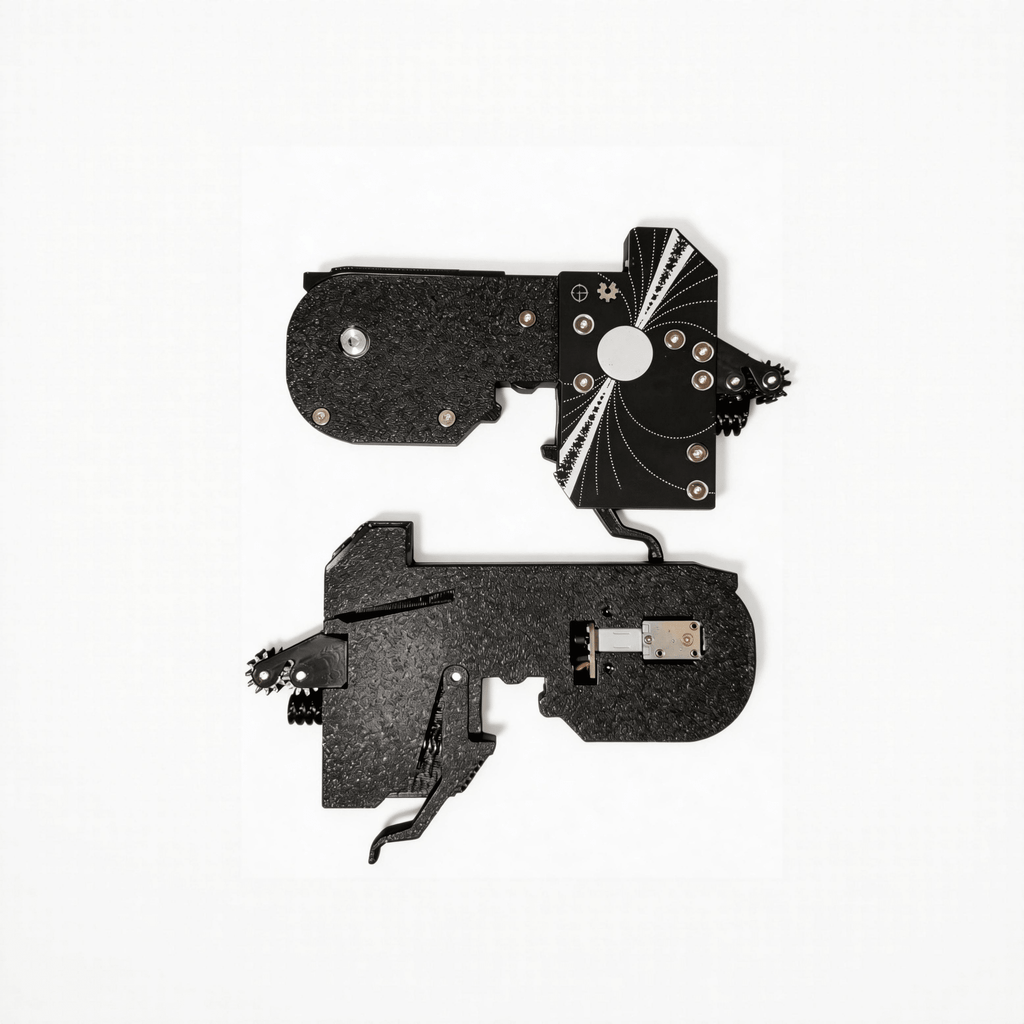

What's Inside Every Unit
| Component | Details |
|---|---|
| Main Controller Board | Custom firmware pre-flashed and tested |
| N20 Peel Motor | Advances and peels the component tape cover film |
| N20 Drive Motor + Driver Board | Precision tape advancement with integrated driver |
| Drive Wheel + Bearing Assembly | Pre-bonded for consistent tape engagement |
| Hardware Kit | All screws, springs, and breakout PCBs included |
| PETG Printed Body | Main structure printed in durable black PETG |
Key Features
- Assembled & Calibrated: Fully built, firmware-flashed, and tested before shipping. Mount it on your machine and start placing immediately.
- OpenPnP Compatible: Integrates seamlessly with any OpenPnP-based pick and place machine, including LumenPnP.
- 8mm Tape Support: Handles standard 8mm/12mm/16mm SMT component tape, covering 0402, 0603, 0805, and most common passive components.
- Reliable Tape Advancement: Dual N20 motors handle both tape drive and cover film peeling independently, ensuring consistent component pickup position every cycle.
- Open-Source Foundation: Built on the well-documented LumenPnP feeder design, with an active community and extensive resources available online.
Who Is This For?
This feeder is designed for engineers, makers, and small electronics teams running an OpenPnP-based pick and place machine who want reliable, automated tape feeding without the time investment of a full DIY build. Whether you're scaling up prototype production or streamlining a small batch workflow, it's a straightforward upgrade to your setup.
Frequently Asked Questions
Is this feeder compatible with LumenPnP machines?
Yes. This feeder is based on the open-source LumenPnP feeder design and is fully compatible with LumenPnP pick and place machines running OpenPnP software.
Does it work with other OpenPnP machines (not just LumenPnP)?
Yes, as long as your machine supports the standard OpenPnP feeder protocol. We recommend checking your machine's feeder slot specifications before ordering.
What tape widths does this feeder support?
This feeder supports standard 8mm/12mm/16mm SMT component tape, which covers the vast majority of 0402, 0603, 0805, and similar passive components.
Do I need to configure anything before using it?
No. The feeder ships fully assembled with firmware pre-flashed and calibrated. Simply mount it to your machine's feeder rail and configure the slot in OpenPnP as you would any standard feeder.
Do you offer bulk pricing?
Yes. For orders of multiple feeders, please contact us directly for volume pricing.
This product is an independently manufactured item based on the open-source LumenPnP feeder design. XAutoLab is not affiliated with or endorsed by Opulo Inc.
