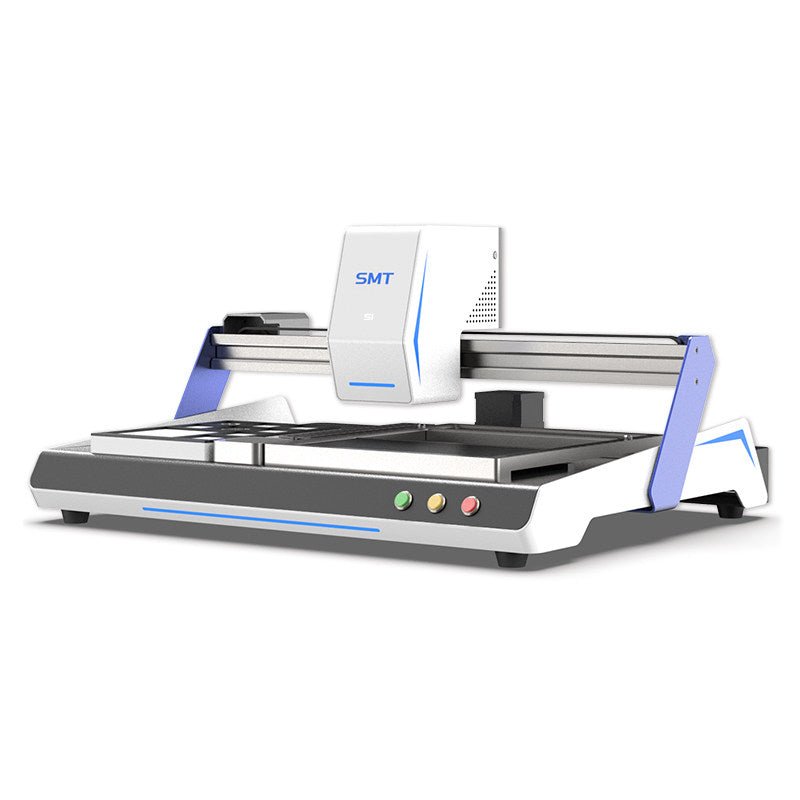

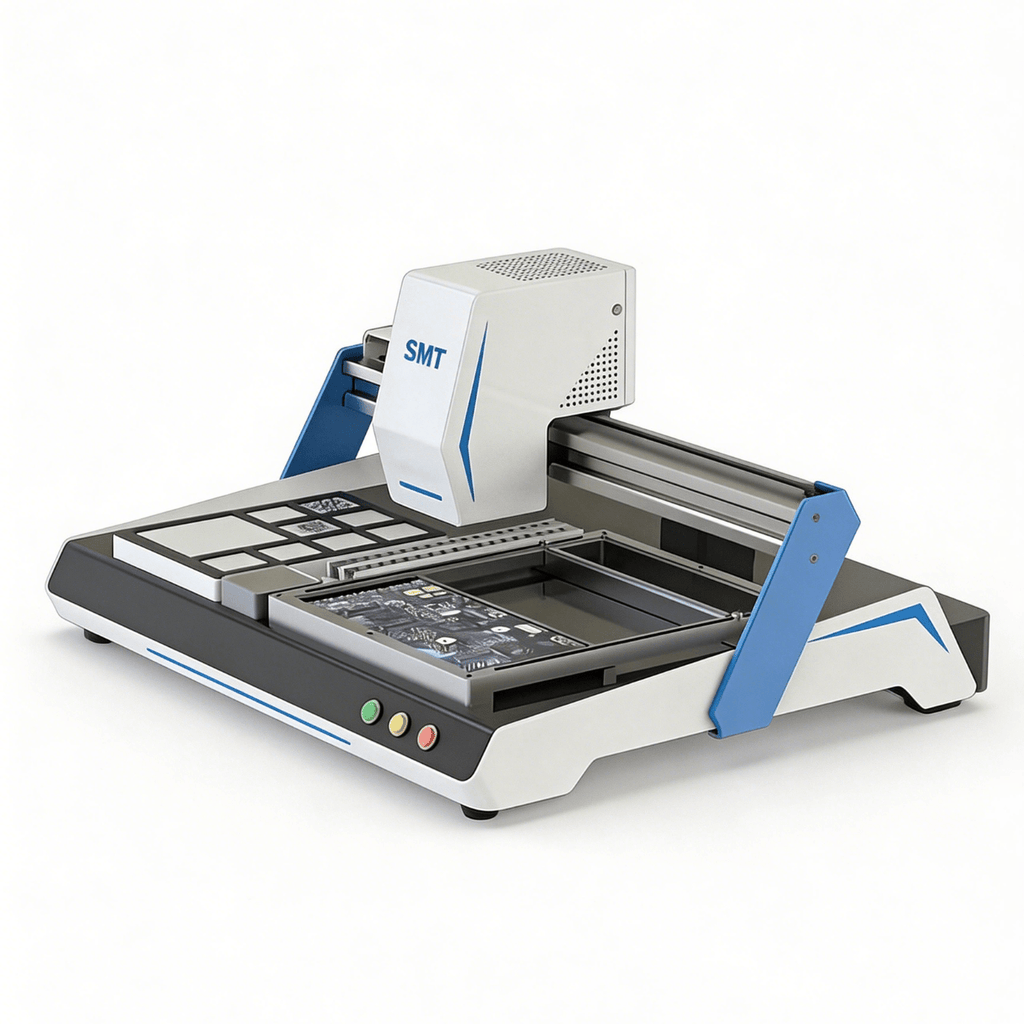

XAutoLab Mini S1 Desktop SMT Pick & Place Machine

MINI S1 is special for 1–5 PCB prototype only.

The XAutoLab Mini S1 is a compact desktop SMT pick and place machine designed for PCB prototyping, R&D validation, education, and small-batch assembly.

It combines a dual vision system (top and bottom cameras) with a rigid all-metal structure to deliver reliable placement accuracy in a space-saving desktop form factor. Mini S1 is ideal for users who need faster and more consistent assembly than manual placement, without the complexity or footprint of a full SMT production line.

With support for common SMD components and a simplified workflow, Mini S1 offers a short learning curve while maintaining practical accuracy for real engineering work. It is especially suitable for engineers, labs, startups, and maker teams working on prototype runs or low-volume production.

Key capabilities include:

Desktop-sized design suitable for labs and workbenches

Dual vision system for component recognition and placement correction

Manual-friendly workflow with visual assistance

Stable all-metal mechanical structure

Optimized for 1–5 PCB prototype or test batches

Technical overview:

Maximum PCB size: 150 × 200 mm

Placement accuracy: ±0.05 mm

Placement speed: 1,000–1,500 CPH (depending on components and operation)

Supported components: 0402 / 0603 / 0805 / 1206, SOT-23, SOP-8, SOP-16, and similar packages

Control interface: USB

Software: XAutoLab self-developed software (Windows 10 and above), supports CSV import and manual visual programming

Mini S1 is designed as an entry-level visual pick and place solution that balances accuracy, flexibility, and ease of use — making it a practical choice for early-stage hardware development and small-scale SMT assembly.
