Xautolab LumenPnP Compatible v4.1 Desktop Pick and Place Machine Kit

Xautolab LumenPnP Compatible v4.1 Desktop Pick and Place Machine Kit is a complete desktop SMT assembly machine for PCB prototyping, small-batch PCBA production, electronics labs, makers, and hardware development teams.

Built around the open-source LumenPnP / OpenPnP ecosystem, this machine provides a practical desktop pick and place workflow for teams that want to bring SMT assembly in-house, reduce outsourcing delays, and speed up hardware iteration.

Complete Desktop SMT Assembly System

• Complete desktop pick and place machine kit for PCBA prototyping and small-batch SMT assembly
• Compatible with the OpenPnP software workflow
• Built for the open-source LumenPnP ecosystem

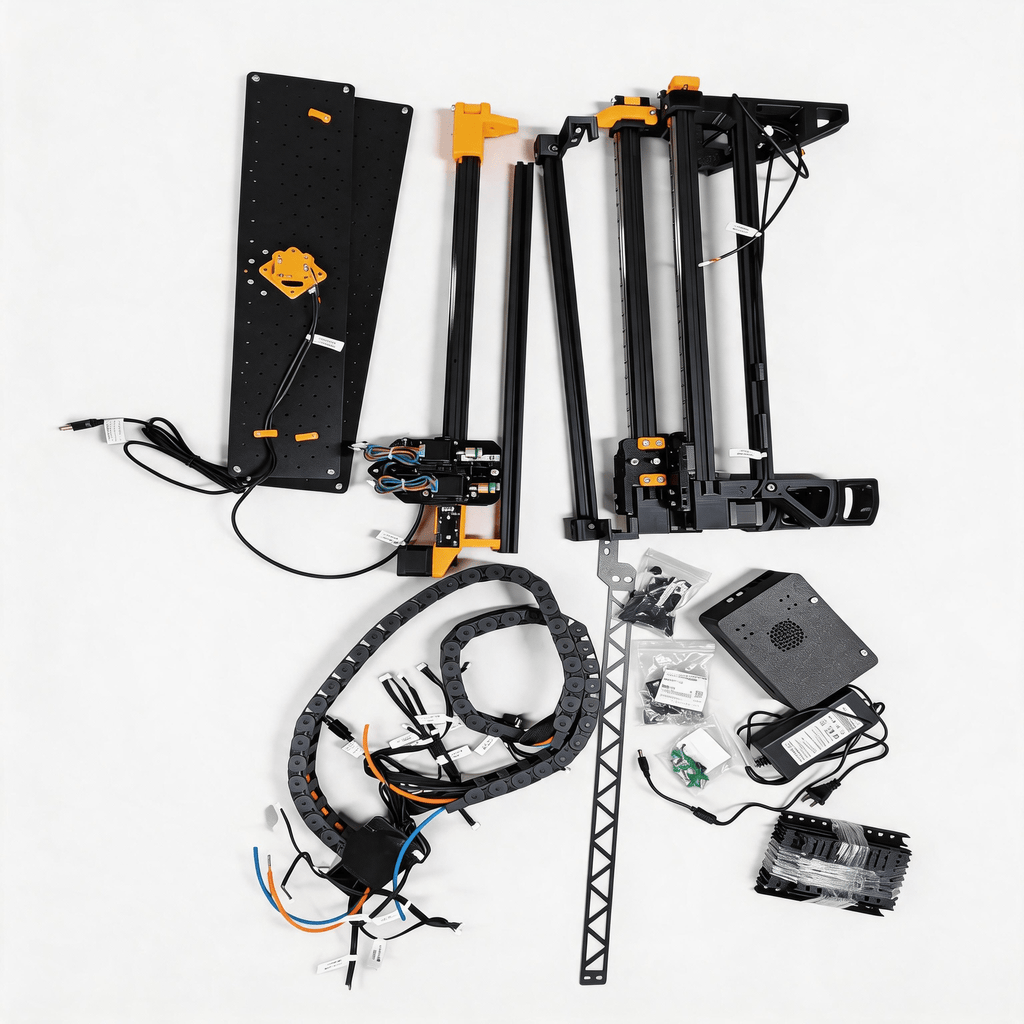

• Includes machine frame, motion system, placement head, camera system, control electronics, wiring, working platform, and accessories
• Supports common SMT components including resistors, capacitors, LEDs, diodes, ICs, and modules
• Supports small components such as 0402, with stable performance for 0603 and 0805 packages
• Dual vision setup with top and bottom camera support for calibration and placement alignment
• Supports strip feeders, loose components, and optional motorized feeder lane configurations
• Suitable for hardware startups, engineering labs, maker spaces, education, and in-house electronics development

Xautolab Compatible Version Improvements

The Xautolab compatible version includes several practical improvements to the control system, camera setup, wiring layout, feeder mounting structure, and working platform. These refinements are designed to improve assembly experience, reliability, and long-term maintainability while keeping the machine compatible with the OpenPnP workflow.

• Redesigned main control board: The main control board has been reworked for improved integration and cleaner wiring.
• Improved control box layout: The control box structure has been optimized for easier installation, cleaner internal organization, and better serviceability.
• External driver / closed-loop stepper support: The updated mainboard design can support external motor drivers or closed-loop stepper motor configurations for future upgrade flexibility.
• Optimized camera system: The camera setup has been refined for more stable visual alignment, machine calibration, and daily operation.
• Cleaner placement head wiring: The wiring around the placement head has been optimized to reduce cable clutter and make inspection and maintenance easier.
• Improved feeder mounting structure: The rear feeder mounting extrusion and installation structure have been adjusted for more convenient feeder setup.
• Carbon steel platform plate: The working platform has been upgraded from a PCB-style platform plate to a carbon steel plate for improved rigidity, durability, and long-term stability.
• Refined mechanical details: Small installation and mechanical details have been improved based on real assembly and usage experience.

Package Options

• Base Kit: Complete machine kit without motorized feeders.
• Starter Kit: Complete machine kit with 6 motorized feeder lanes.
• Standard Kit: Complete machine kit with 12 motorized feeder lanes.
• Production Kit: Complete machine kit with 24 motorized feeder lanes.

Each motorized feeder lane is supplied as a real motorized feeder channel, not just an empty slot. The machine can support up to 50 motorized feeder lanes depending on configuration. For larger feeder configurations, please contact us before ordering.

Recommended Applications

• PCB prototype assembly
• Small-batch SMT production
• Engineering validation builds
• Hardware startup product development
• Electronics lab and maker space use
• Educational SMT training
• In-house PCBA development and testing

Important Note

This product is a LumenPnP-compatible machine supplied by Xautolab. Xautolab is not affiliated with, sponsored by, or endorsed by Opulo. LumenPnP and related project names are referenced only to describe compatibility with the open-source LumenPnP / OpenPnP ecosystem.
