Electronic Kalimba DIY Kit

Electronic Kalimba DIY Kit

Build Your Own Musical Instrument

An open-source electronic kalimba kit that combines music, electronics, and hands-on learning. This project is designed for makers who want to practice soldering skills while creating a functional musical instrument.

Unlike traditional thumb pianos, this electronic version uses tactile buttons and a built-in speaker to produce kalimba tones—making it a perfect introduction to both music theory and circuit assembly.

What You Get

This kit is available in two configurations:

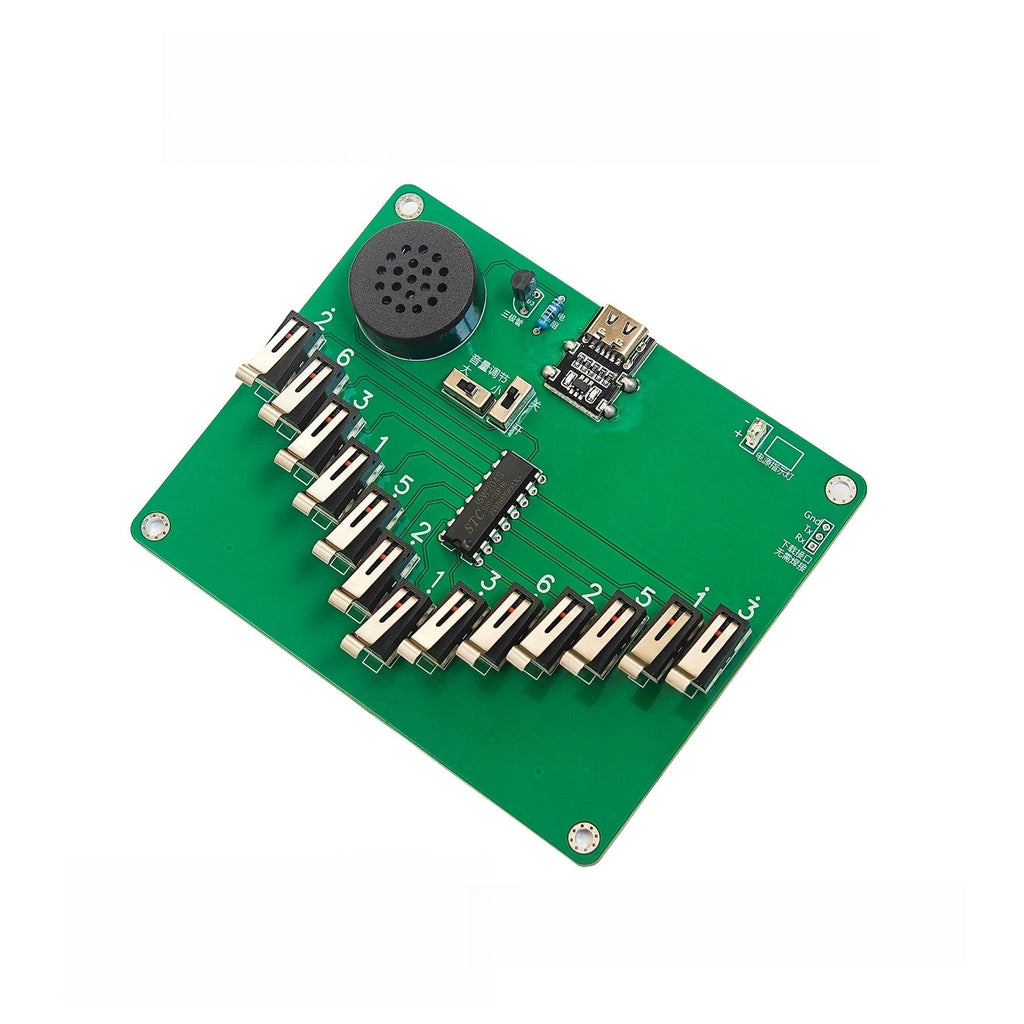

• 5-note pentatonic scale — Simpler build, easier to play, great for beginners

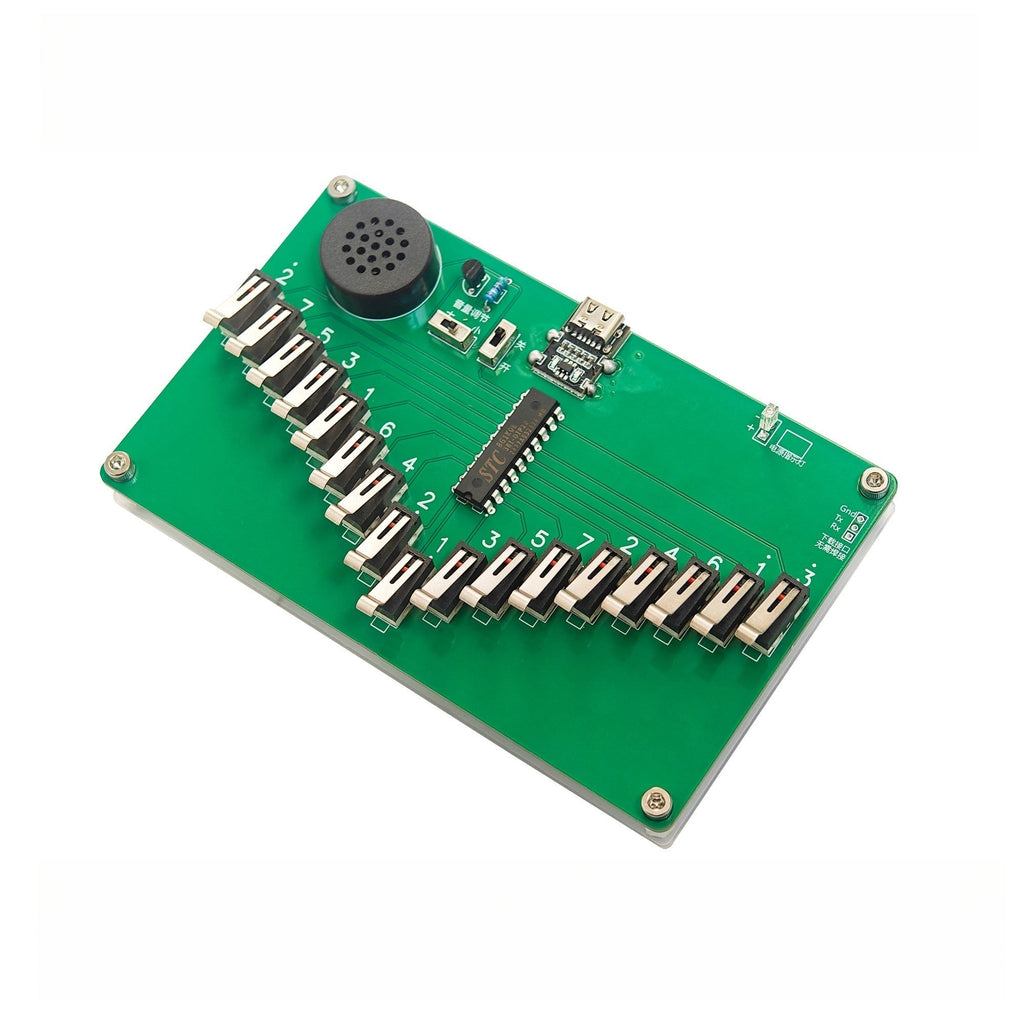

• 7-note diatonic scale — More musical range, recommended for experienced builders

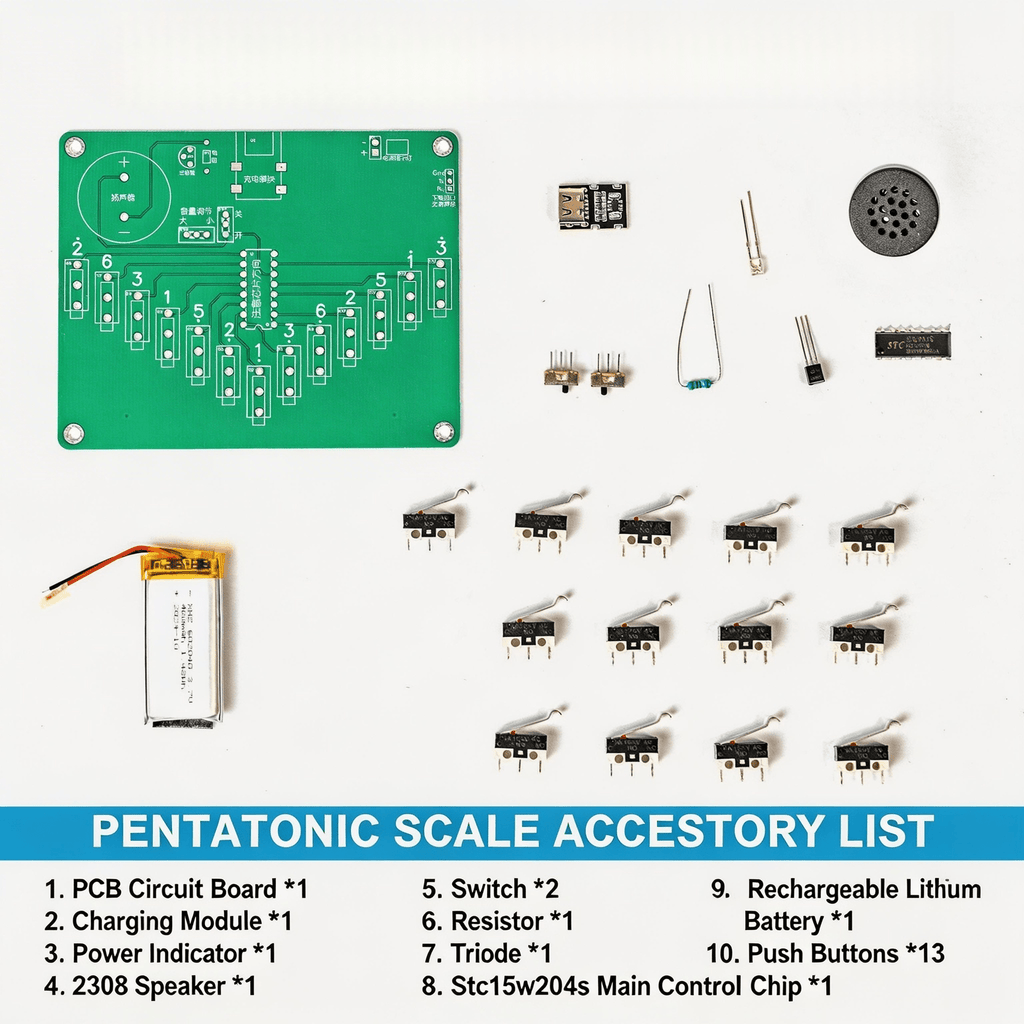

Each kit includes all necessary components: PCB, speaker, buttons, resistors, capacitors, and electronic parts. You provide the soldering iron and curiosity.

Why Build This?

• Soldering practice — Real-world project with clear success criteria (it plays music!)
• Open-source design — Schematics and code available for modification
• Functional result — Not just a practice board—you get a working instrument
• Educational value — Learn about tone generation, button matrices, and audio circuits
• Compact and portable — Fits in your hand, powered by battery

Technical Learning Opportunities

Building this kit teaches:

- Through-hole soldering techniques
- Component identification and placement
- Basic audio circuit operation
- Button matrix wiring
- PCB assembly workflow

Specifications

PCB Color: Green
Scale Options: 5-note (pentatonic) or 7-note (diatonic)
Power: Battery-powered (battery not included)
Sound Output: Built-in speaker
Assembly: Through-hole soldering required
Difficulty: Beginner to intermediate
Estimated Build Time: 1-2 hours

Available Versions

• DIY Kit (components only) — Requires soldering
• Assembled Version — Pre-soldered, ready to play

Who Is This For?

This kit is ideal for:

- Electronics students learning to solder
- Makers interested in musical instruments
- STEM educators looking for hands-on projects
- Hobbyists who enjoy building functional gadgets
- Anyone curious about how electronic instruments work

Open Source & Hackable

This is an open-source project. Modify the circuit, change the tones, add features—it's yours to experiment with. Perfect for learning by doing.
