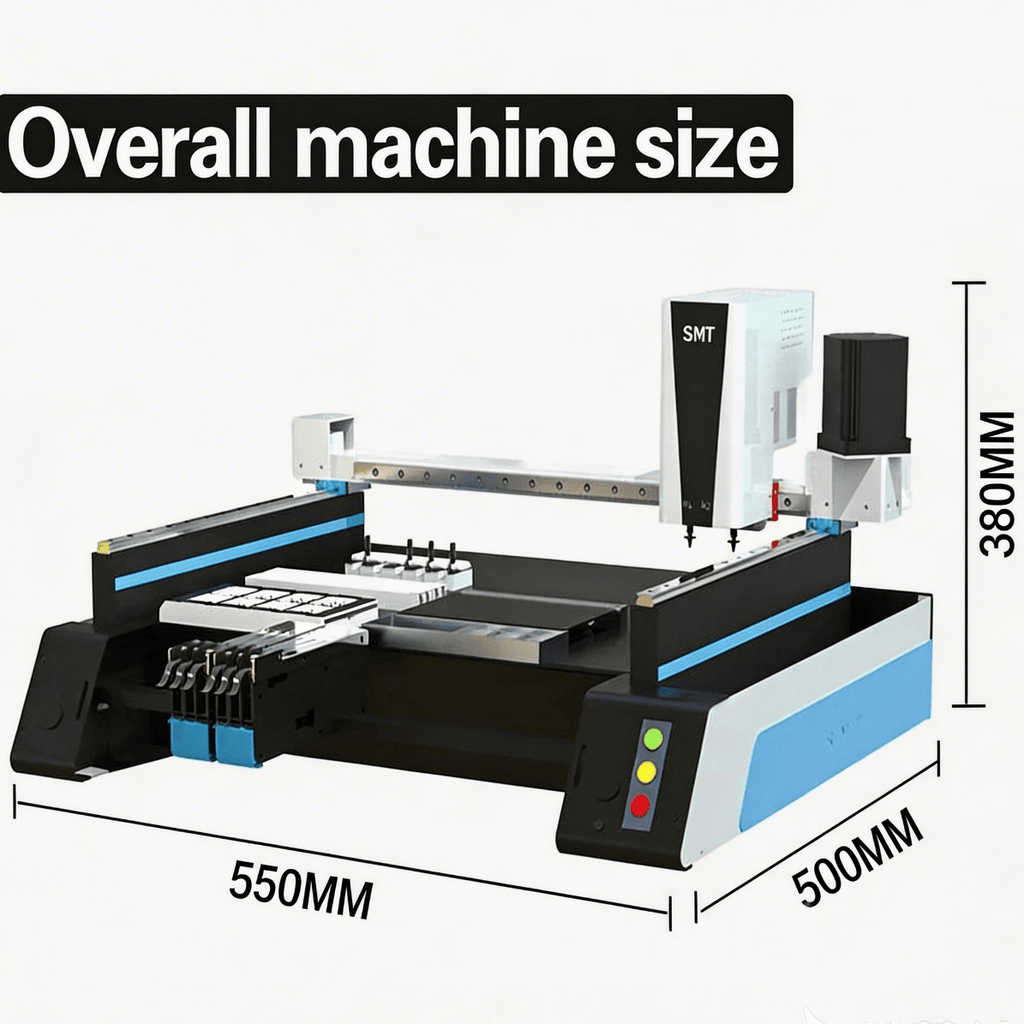

XAutoLab X1 Pro Advanced Desktop SMT Pick & Place Machine

XAutoLab X1 Pro Desktop SMT Pick & Place Machine

Base Kit - 1 Electric Feeder Included

$1,699.00 USD $1,899.00 USD

XAutoLab X1 Pro Desktop SMT Pick & Place Machine

$1,699.00 USD $1,899.00 USD

Shipping calculated at checkout.

Stop hand-soldering. Start producing. The XAutoLab X1 Pro is a professional-grade, high-speed desktop Pick & Place machine designed to bridge the gap between manual prototyping and expensive industrial assembly lines.

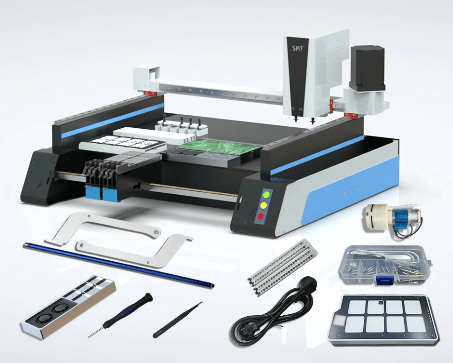

📦 WHAT’S INCLUDED IN THE BOX?

We know clarity is key. Here is the complete checklist of everything included in your $1,599 investment:

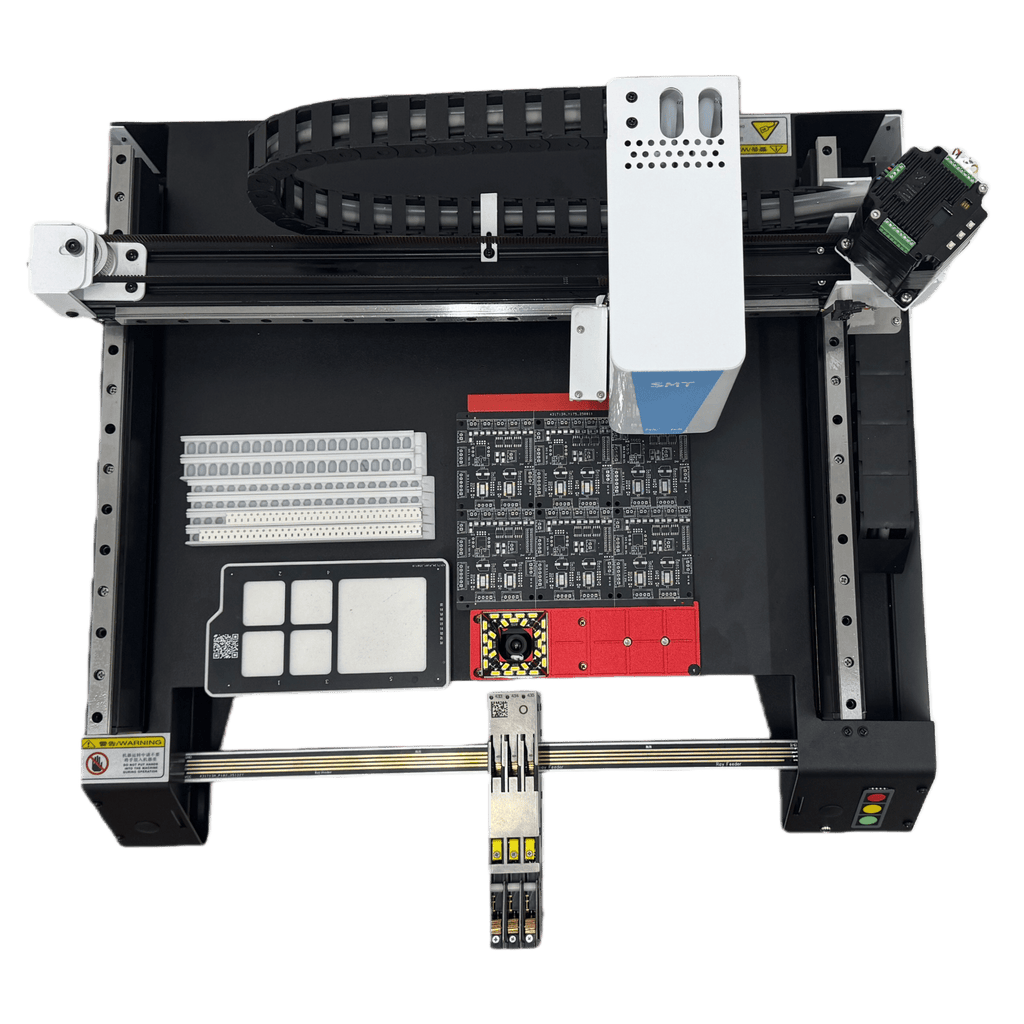

✅ 1 x XAutoLab X1 Pro Machine – Fully assembled, calibrated, and factory-tested.

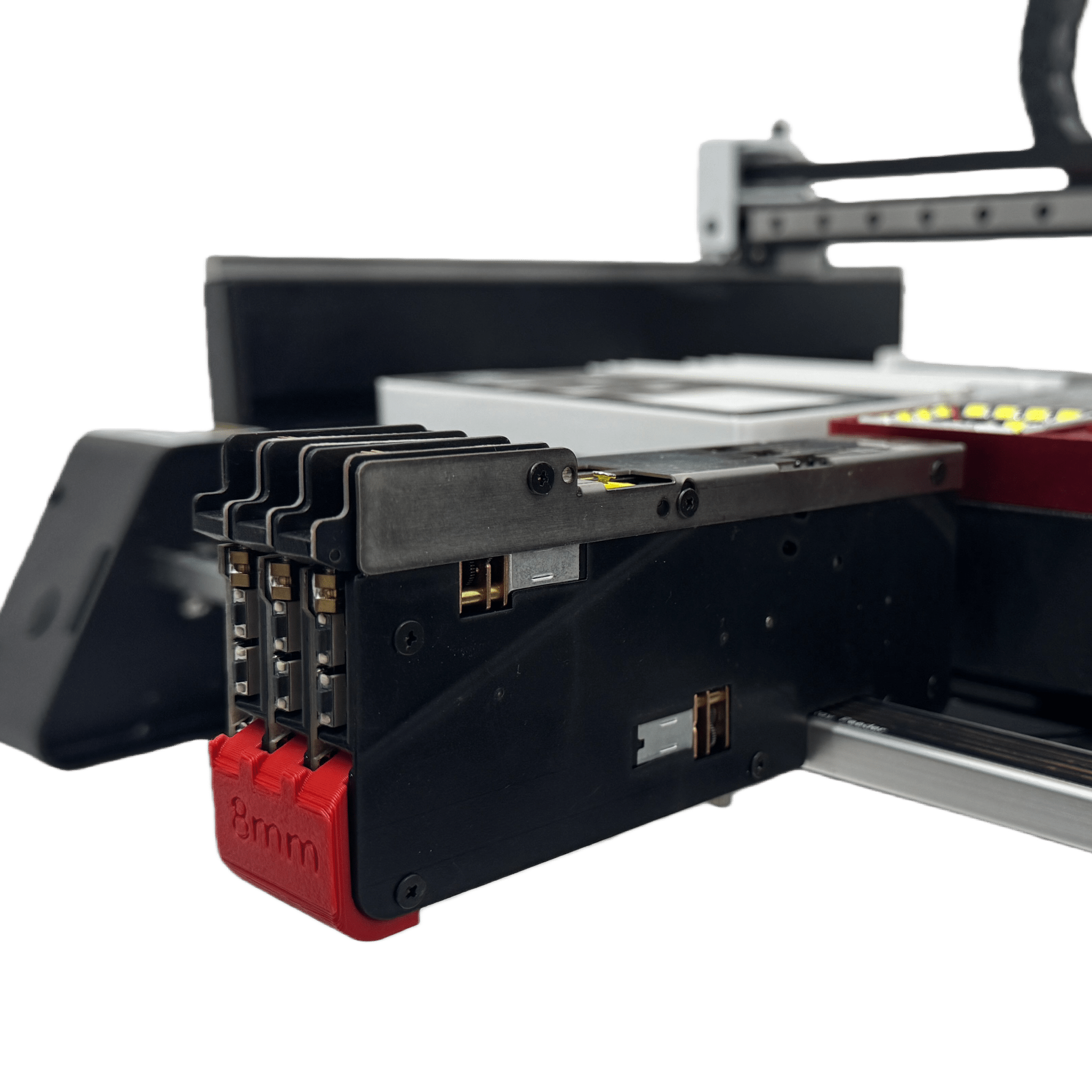

✅ 1 x 8mm 3-Lane Electric Feeder – High-speed motorized feeding for your most-used 0402/0603/0805 components.
✅ 1 x Vision Feeder – Advanced vision-based feeding for loose components or specialized ICs.
✅ 2 x Strip Feeders – Ideal for handling short tape segments from prototyping runs.
✅ 2 x Juki-compatible Nozzles – Precision-ground for reliable pick-up and placement.
✅ Integrated Industrial Vacuum System – Built-in high-power pump and solenoid valves (No external air source required).
✅ Full Accessory Kit – All necessary power cables, USB communication cables, and lifetime software access.

🚀 CORE ADVANTAGES

1. Industrial-Grade 304 Stainless Steel Chassis

Most desktop machines use aluminum extrusions that flex and drift. The X1 Pro is built on a welded 304 stainless steel frame. This rigid foundation eliminates vibration and thermal drift, ensuring sub-0.05mm repeatability even after thousands of hours of operation.

2. High-Resolution Dual-Vision Alignment

Equipped with independent upward and downward cameras, the X1 Pro uses real-time computer vision to compensate for component rotation and offset. This enables reliable placement of:

Tiny Passives: 0402, 0603, 0805.
Complex ICs: QFN, TQFP, BGA, and fine-pitch connectors.

3. True Production Speed (4,000 CPH)

Time is money. With an optimized placement rate of up to 4,000 Components Per Hour, you can turn a full day of tedious hand-soldering into a 20-minute automated job with superior quality.

4. Modular & High-Capacity Feeding System

The X1 Pro features a flexible feeder rack designed to maximize your component library. The rack accommodates up to 12 standard feeder units (24mm width each), allowing for a highly customizable setup:

8mm Feeders (3-lane): Maximize your capacity with up to 36 unique positions for passives.
12mm Feeders (2-lane): 24mm width, providing 2 lanes for medium-sized components.
16mm Feeders (2-lane): 32mm width for larger parts.
24mm Feeders (1-lane): 24mm width for wide tapes.
Total Versatility: Combined with the included Vision and Strip feeders, you can manage 40+ unique components in a single run.

🛠️ TECHNICAL SPECIFICATIONS

Placement Accuracy: ±0.05 mm
Max PCB Size: 200 x 300 mm (Supports double-sided boards)
Component Range: 0402, 0603, 0805, SOP, QFN, BGA, etc.
Z-Axis Travel: 20mm (Handles taller components and connectors)
Software: XAutoLab Control (Guided setup, Plug-and-Play)

Package Base Kit - 1 Electric Feeder Included Starter Kit - 3 Electric Feeder Units Standard Kit - 6 Electric Feeder Units Full Feeder Kit - 12 Electric Feeder Units
